ATEX LED MAX
KEY FEATURES:
- ATEX approved LED
- Aluminium frame
- Steel brackets
- Functional in hazard zones 2 to 22
- IP66 & IK07 resistance
- Can be installed on a wall or ceiling as either a hood or projector
- Extensive symmetrical optics to cover a wide area.
- Intensive symmetrical allows light to be concentrate below luminaire.
- Extensive asymmetrical ideal on walls to light the area in front of the wall.

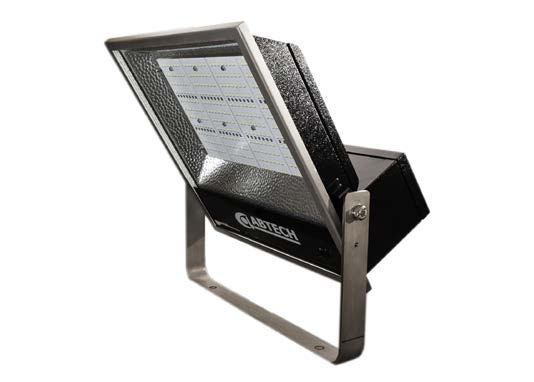

Gamma Floodlight
The Gamma is a high
output LED floodlight is designed for use in Zone 1 & 21 hazardous areas.
The compact design and flexible mounting allows the Gamma to also be used as a
lowbay.
Key Features:
• High performance LED
module providing uniform and crisp white light.
• Stainless steel
construction to ensure extended life in harsh conditions • 5-year complete system warranty
Standard Specifications:
| Luminaire Type | Zone 1 & 21 LED Floodlight/Lowbay |
| Ingress Protection | IP66/67 to EN60529 |
| Ambient Temperature | -30° C to +55° C |
| Material | Stainless steel 316 grade housing, toughened glass window, silicone gaskets and stainless steel fixings |
| Lamp Types | Light emitting diode, pure white (5700K) |
| Colour Rendering Index | > 80 |
| LED Life | 50,000 hours L70 @ 50° C |
| Cable Entry | 2 x M20 clearance holes. Supplied with 1 x Ex plug and 1 x transit plug |
| Terminals | Looping terminal block for up to 4mm2 conductors |
| Control Gear | Electronic driver: EN60601-1 (CE), EN61204-3 (EMC), EN61000-4-5 (surge protection class 3) |
| Orientation | 0° to 120° |
| Mounting | Via saddle bracket |
| Supply | 110 to 254V 50/60Hz ac |
| Certification | |
| Area Classification | Zone 1 & 21, Gas and Dust |
| Type of Protection | Ex e (Increased Safety), Ex is(Intrinsically Safe), Ex op (Optical Radiation) Ex q (Quartz Filled) & Ex tb (Dust) |
| Apparatus Coding* | Ex nA IIC T# Gc, Ex tb IIIC T#° C Db and Ex tc IIIC T#° C Dc |
| Certificate Number | ATEX 15ATEX3045 (Zone 2 & 22), 15ATEX4042 (Zone 21) / IECEx CML15.0022 |
| Product Reference |
Colour Temperature (K) |
Lumen Output (lm) |
Power (W) |
Temp Class and Surface
Temp Tamb 55° C Tamb 40° C |
Weight (kg) |
|||
| LX1GAM4LB57 | 5,700 | 10,870 | 72 | T3 | T100° C | T4 | T85° C | 13 |
Gamma Floodlight
The Gamma is a high output LED floodlight is designed for use in
Zone 2, 21 & 22 hazardous areas.
Key Features:
• High performance LED module providing uniform and crisp white
light.
• Stainless steel construction to ensure extended life in harsh
conditions
• Control gear with thermal cut-off protection to maintain LED life
• 5 year complete system warranty
Standard Specifications:
| Luminaire Type | Zone 2 LED Floodlight |
| Ingress Protection | IP66/67 to EN60529 |
| Ambient Temperature | -50° C to +55° C |
| Material | Stainless steel 316 grade housing, toughened glass window, silicone gaskets and stainless steel fixings |
| Lamp Types | Light emitting diode, pure white (5700K) |
| Colour Rendering Index | > 80 |
| LED Life | 50,000 hours L70 @ 50° C |
| Cable Entry | 2 x M20 clearance holes. Supplied with 1 x Ex plug and 1 x transit plug |
| Terminals | Looping terminal block for up to 4mm2 conductors |
| Control Gear | Electronic driver with built in thermal cut off to extend operational life |
| Orientation | 0° to 120° |
| Mounting | Via saddle bracket |
| Supply | 90 to 305V 50/60Hz ac |
| Certification | |
| Area Classification | Zone 2, 21 & 22, Gas and Dust |
| Type of Protection | Ex nA (non-sparking), Ex tb & Ex tc (Dust) |
| Apparatus Coding* | Ex nA IIC T# Gc, Ex tb IIIC T#° C Db and Ex tc IIIC T#° C Dc |
| Certificate Number | ATEX 15ATEX3045 (Zone 2 & 22), 15ATEX4042 (Zone 21) / IECEx CML15.0022 |
| Product Reference |
Colour Temperature (K) |
Lumen Output (lm) |
Power (W) |
Temp Class and Surface
Temp Tamb 55° C Tamb 40° C |
Weight (kg) |
|||
| LX2GAM4LB57 | 5,700 | 13,675 | 9600 | T3 | T100° C | T4 | T85° C | 13 |
Hazlite
PRIMA LED Ex Series
Key Features:
- Explosion proof environment category group II, category 3 (Zone 2,22)
- 5 year warranty & 50,000 hour lifespan
- Polycarbonate body for high impact resistance.
- Weatherproof
- Light fitting protection IP66
Mounting Accesories:
- Directly to a celing or a wall with the use of screws and stainless brackets
- Suspension with the us of stainless hooks
- Attachment with the use of side hangars to the wall
Product Data Sheets
Product data sheets listed by part number
Explosion-proof Lighting G2X
Key Features:
- IP66 & IK08 for us in hazard zones 2 & 22
- Can be mounted on either wall or ceiling
- Emergency Kit models available
- For use indoors and in sheltered areas
- LED lifetime of 65000 hours
- Housed in compressed glass fibre reinforced polyester in graphite black or gray.
| MODEL | Dimensions (mm) L x D | with Emergency Kit (Optional) |
| G2X LED 600 PC INOX | 665 x 390 | N/A |
| G2X LED 1200 PC INOX | 1282 x 800 | G2X LED EB 1200 PC INOX |
| G2X LED 1500 PC INOX | 1578 x 1100 | G2X LED EB 1500 PC INOX |
| Components | Material |
| Housing | SMC + 15%GF |
| Gasket | Polyurethane |
| Gear Tray Holder | PA 6.6 |
| Gear Tray | Steel Plate |
| LED Stripes | The Main. PO |
| Diffuser | PC |
| Driver | Electronic |
| Clsoing clips | Stainless Steel |
| Fixng Springs | Stainless Steel |
| Photometric Data | G2X LED 600 PC INOX | G2X LED 1200 PC INOX | G2X LED 1500 PC INOX |
| Consumption | 22W | 40W | 45W |
| Efficiency | 100lm/W | 110lm/W | 116lm/W |
| Luminous Flex | 2200lm | 4400lm | 5200lm |
| Voltage | 230V | 230v | 230V |
| Colour Temperature | 4000K | 4000K | 4000K |
| Emergency Kit | N/A | 60' or 180' | 180' |
